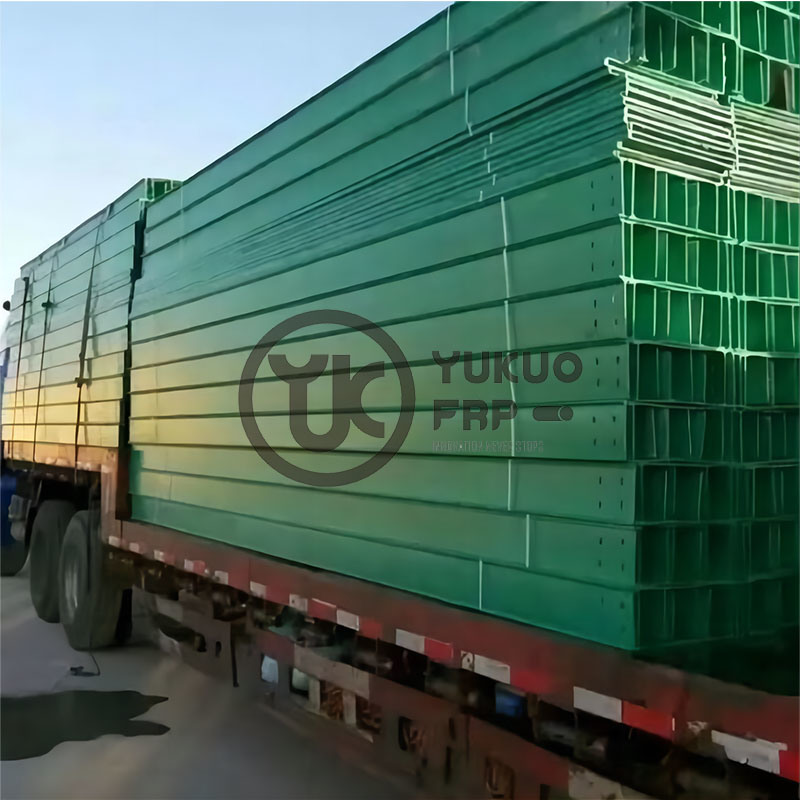

FRP Ladder Though cable tray

FRP cable tray adopts FRP pultrusion process and is mechanized production. Made of flexible glass fiber and ISO resin, it not only has the rigidity of metal but also the toughness of fiber. At the same time, flame retardants are added during production, and due to the low thermal conductivity of the raw materials, the FRP cable tray has good fire protection and heat insulation, self-extinguishing performance and extremely high corrosion resistance. It can be widely used in petroleum, chemical industry, electric power, light industry, television, telecommunications and other industries and in highly corrosive environments, large spans, heavy loads, etc.

-------------------------------------------------------------------------------------------------------------------------------------------

APPLICATION:
FRP ladder trough cable tray, ladder cable tray and trough cable tray are spliced together, it is suitable for both the installation of power cables and the laying of control cables.

-------------------------------------------------------------------------------------------------------------------------------------------

ADVANTAGES:
1. Corrosion resistance
2. Easy to install & replace
3. Fire retardant & ultra violet (UV) stabilized
4. Multiple color available
5. Light weight and high strength
6. As it is self-pigmented, no need of painting
7. Strength & durability
8. Conveniently used

-------------------------------------------------------------------------------------------------------------------------------------------

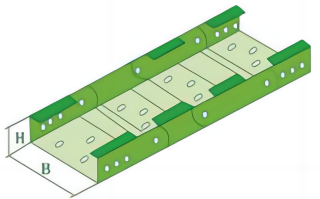

DIMENSIONS OF LADDER THOUGH CABLE TRAY:

FRP Ladder Though cable tray	Item	H(mm)	B(mm)	Thickness(mm)
	HBYK-01-50	50	50	2.8
	HBYK-01-50	50	100	2.8
	HBYK-01-100	100	100	3
	HBYK-01-100		150	3
	HBYK-01-100		200	3
	HBYK-01-100		300	3
	HBYK-01-100		400	3.3
	HBYK-01-100		500	5
	HBYK-01-100		600	5
	HBYK-01-100		800	5
	HBYK-01-150	150	150	3
	HBYK-01-150		200	3.2
	HBYK-01-150		250	3.3
	HBYK-01-150		300	3.5
	HBYK-01-150		400	3.6
	HBYK-01-150		500	4.5
	HBYK-01-150		600	4.5
	HBYK-01-150		800	5
	HBYK-01-200	200	200	3.5
	HBYK-01-200		250	3.5
	HBYK-01-200		300	3.7
	HBYK-01-200		400	4
	HBYK-01-200		500	4.5
	HBYK-01-200		600	5
	HBYK-01-200		800	5
