APPLICATION:
The FRP Ladder cable tray is suitable for the laying of large diameter cables in general, and is especially suitable for the laying of high and low power cables.
-------------------------------------------------------------------------------------------------------------------------------------------
ADVANTAGES:
1. Corrosion resistance
2. Easy to install & replace
3. Fire retardant & ultra violet (UV) stabilized
4. Multiple color available
5. Light weight and high strength
6. As it is self-pigmented, no need of painting
7. Strength & durability
8. Conveniently used with metal cable trays
-------------------------------------------------------------------------------------------------------------------------------------------

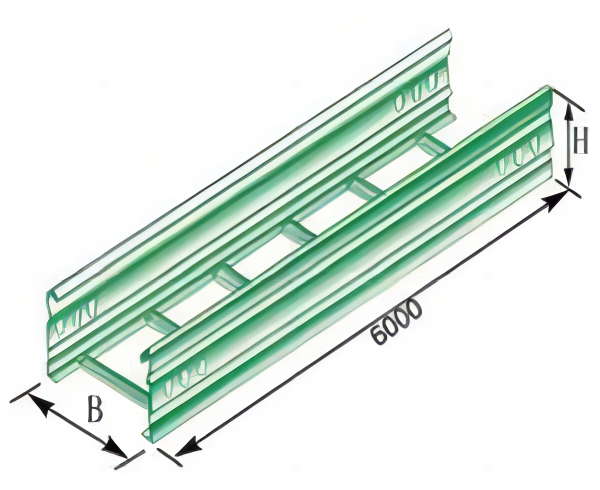

DIMENSIONS OF LADDER CABLE TRAY:
|
FRP Ladder cable tray
|
Item
|
H(mm)
|
B(mm)
|
Thickness(mm)
|
|
|
HBYK-02-100
|
100
|
150
|
4
|
|
HBYK-02-100
|
200
|
4
|
|
HBYK-02-100
|
300
|
4
|
|
HBYK-02-100
|
400
|
4
|
|
HBYK-02-100
|
500
|
4
|
|
HBYK-02-100
|
600
|
4
|
|
HBYK-02-100
|
800
|
4
|
|
HBYK-02-100
|
1000
|
4
|
|
HBYK-02-150
|
150
|
200
|
4
|
|
HBYK-02-150
|
300
|
4
|
|
HBYK-02-150
|
400
|
4
|
|
HBYK-02-150
|
500
|
4
|
|
HBYK-02-150
|
600
|
4
|
|
HBYK-02-150
|
800
|
4
|
|
HBYK-02-150
|
1000
|
4
|
|
HBYK-02-200
|
200
|
200
|
5
|
|
HBYK-02-200
|
300
|
5
|
|
HBYK-02-200
|
400
|
5
|
|
HBYK-02-200
|
500
|
5
|
|
HBYK-02-200
|
600
|
5
|
|
HBYK-02-200
|
800
|
5
|
|
HBYK-02-200
|
1000
|
5
|
|
